LOADLINE: The Most Complete CNC Loading System for Routers & Knife Cutting Machines

Loadline Loading System Blog

Reading time: ~ 4 minutes

Built to Last. Built to Perform.

Loading sheet materials shouldn’t slow down your workflow. Manual handling eats into production time, increases labor costs, and risks damaging sensitive surfaces.

That’s why AXYZ developed LOADLINE — the most complete material loading solution for CNC routers and knife cutting machines. With three models — Edge, Core, and HD — LOADLINE gives manufacturers the flexibility to automate safely, efficiently, and affordably.

Meet the LOADLINE Series

LOADLINE Edge

  • Drag-based material loading system
  • Handles sheet sizes from 4’x8’ to 5’x12’, up to 200 lbs
  • Auto-aligns sheets within 3″ tolerance for maximum yield
  • Works with porous, non-porous & textured materials
  • Automatic offloading of finished parts → single-operator loading & unloading for continuous operation
  • Perfect for signage, cabinetry, HVAC, cladding, woodworking, and packaging

LOADLINE Core

  • Rail-based design with flanged wheels
  • Simple, reliable, and cost-effective
  • Best for balanced sheet loading in small-to-mid shops
  • Supports sheets up to 250 lbs
  • Entry point into CNC automation
  • Single-operator loading reduces labor and operator fatigue

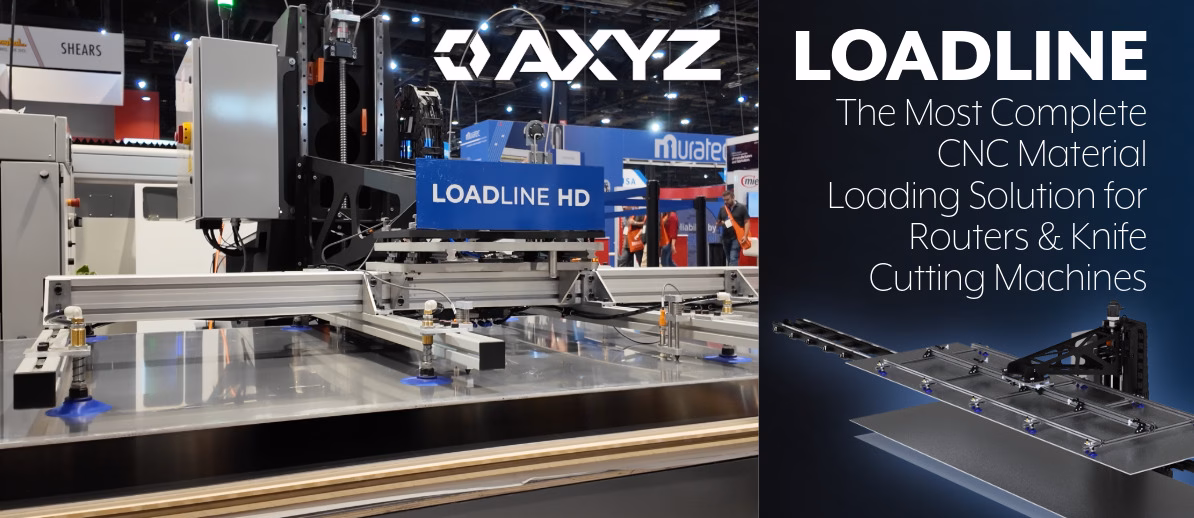

LOADLINE HD

  • Anchored rails with servo-driven precision
  • High stability & extended reach for oversized or heavy sheets
  • Supports sheets up to 600 lbs (272 kg) and 16 ft
  • Built-in sheet cracking system prevents double-feeding
  • Single-operator loading enables efficient, heavy-duty handling

Benefits Across the LOADLINE Range

  • Single-operator loading (all models) → reduce labor costs and fatigue
  • Single-operator unloading (Edge only) → thanks to automatic offloading
  • Scratch-free or drag-based handling → tailored to your material needs
  • Bulk sheet staging (Edge & HD) → scissor lift platform supports up to 5,000 lbs
  • Automatic alignment pins (Edge & HD) → ensure maximum material usage
  • Retrofit-ready design → integrates seamlessly with most AXYZ routers and WARDJet waterjets

Applications & Materials

Materials Supported

  • ACM & Aluminum
  • Plastics & Melamine
  • Plywood & Cabinetry Panels
  • Closed Cell Foam
  • Metals
  • Cladding & Composites
  • Signage & Packaging Materials

Industries Served

  • Architectural Cladding & Facades
  • Signage & Print Finishing
  • Metal Fabrication & Processing
  • Woodworking & Cabinetry
  • HVAC & Packaging
  • Foam, Rubber & Prototyping

Whether you’re processing lightweight plastics or heavy-duty cladding panels, LOADLINE ensures precision material handling every time.

Bundle and Save with the LOAD & CUT Promo Save 14%

For a limited time, bundle an AXYZ CNC Router with a LOADLINE Loading System (Edge, Core, or HD) and save up to 14%.

👉 Request a Quote Today and see how LOADLINE can transform your production floor.

Get A Free Quote

FAQs About LOADLINE CNC Loading Systems

Q: What’s the difference between LOADLINE Edge, Core, and HD?

  • Edge → drag-based, large-format, up to 200 lbs, includes automatic offloading
  • Core → simple rail-based design, entry-level automation lifts up to 250lbs and 10ft long sheets
  • HD → servo-driven precision, heavy-duty capacity up to 600 lbs and 16 ft sheets

Q: How does LOADLINE compare to Biesse, Multicam, Laguna, or CR Onsrud loaders?
These competitors also offer automated loading systems, including drag-based solutions and overhead systems. However, many are bundled with new machine purchases. The AXYZ LOADLINE series is retrofit-ready, compact, and purpose-built for AXYZ routers — giving shops more flexibility and choice.

Q: What is the maximum load capacity?

  • Edge → up to 200 lbs per sheet
  • Core → designed for balanced sheet handling
  • HD → up to 600 lbs (272 kg), 16 ft sheets

Q: What materials can LOADLINE handle?
LOADLINE supports ACM, aluminum, wood, plastics, composites, foam, and metals — across porous and non-porous materials.

Final Word: Built to Last. Built to Perform.

The AXYZ LOADLINE series (Edge, Core & HD) is the most complete CNC material loading solution available today. Whether you need entry-level automation, heavy-duty servo precision, or full offloading capabilities, there’s a LOADLINE built for your workflow. With LOADLINE, you can streamline productivity, reduce manual handling, and maximize the efficiency of your CNC operations.

📌 Don’t just load materials. Load smarter, safer, and faster — with LOADLINE.
